Technical Specifications

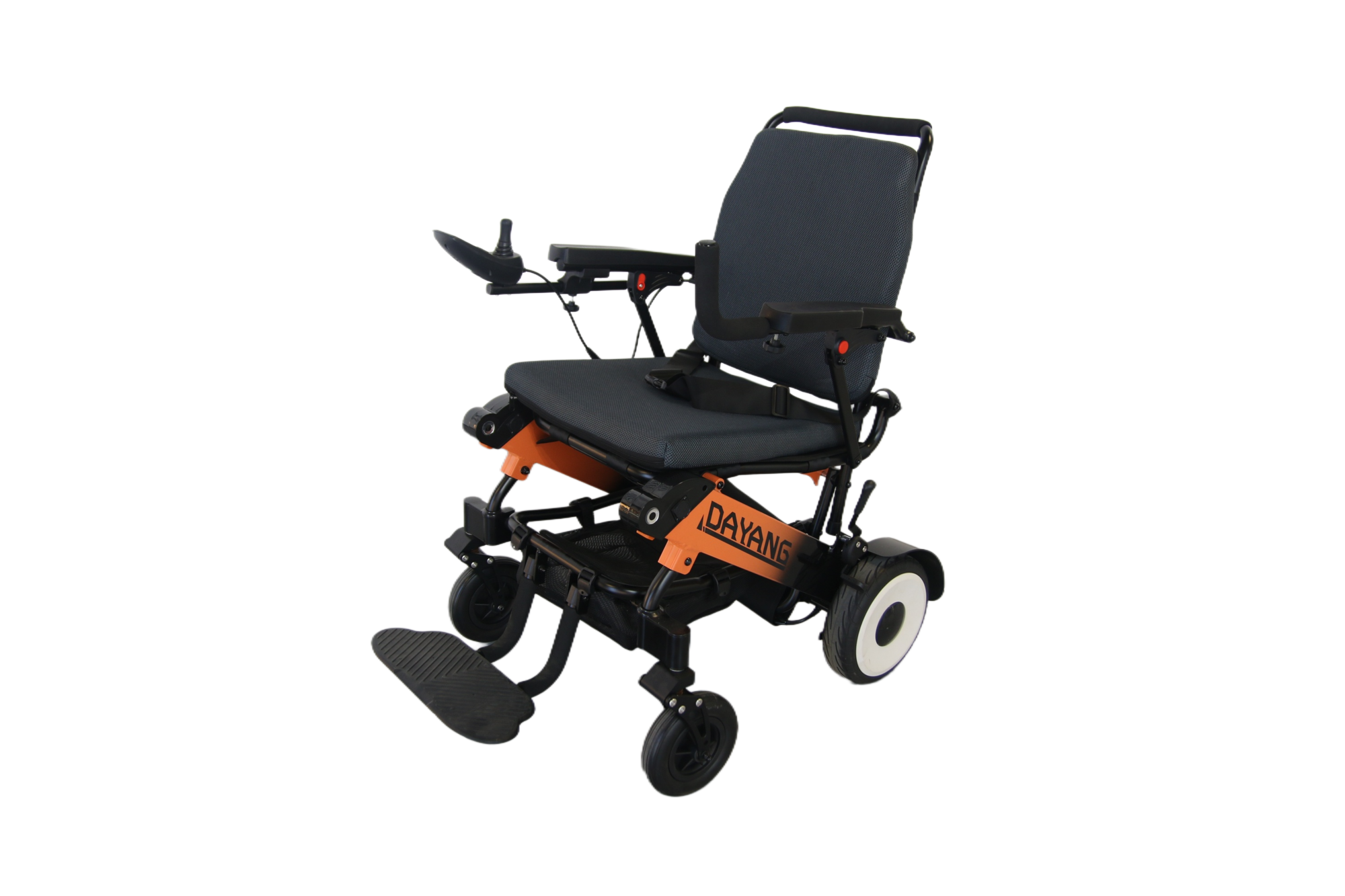

Model: DH01105(5) shock-absorbing rocker arm electric wheelchair
Overall dimension: 105cm length, 63cm width, 102cm height

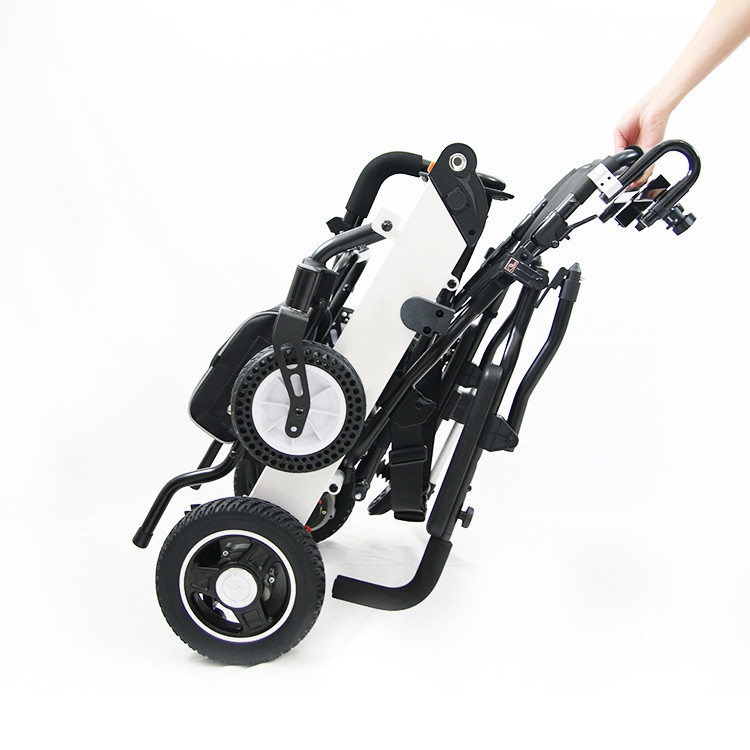

Folded dimension: 65cm length, 36cm width, 86cm height
Packing dimension: 64cm * 38cm * 90cm
Seat data: seat width 42cm, seat depth 45cm, seat height from ground 55cm, backrest height 46cm, armrest height 74cm
Wheels: 8-inch honeycomb air-free front tires; 12.5-inch rear wheels fitted with brushed electromagnetic brake motor
Power system: 250W per motor, two motors in total; optional 7.5AH or 10AH lithium battery Driving
performance: maximum driving range 30km, maximum speed 6km/h, climbing capacity 9°, obstacle surmounting height 4cm
Frame: made of high-strength aluminum alloy square and round tube with 2.0mm wall thickness
Weight and load: net weight 29.3kg, gross weight 30kg, maximum load capacity 100kg
Product Introduction
Frame structure: The main frame is welded by high-strength aluminum alloy flat tube with 2.0mm wall thickness, featuring light weight, high strength and elegant appearance. The surface adopts spraying process to resist oxidation and aging. The whole frame can be folded quickly, saving storage space and easy to carry for travel.
Cushion configuration: Seat and backrest are sewn with high-strength grid cloth, added with canvas interlayer for reinforcement. The cushion is soft, breathable and anti-slip, with overall tensile strength reaching 5000N.
Driving and shock absorption system: It is equipped with 8-inch wear-proof honeycomb solid front tires with shock absorption function, matched with aluminum alloy universal wheel forks to reduce road bump vibration. The rear dual 250W brushed motors with electromagnetic brake are light, energy-saving and deliver strong stable power.

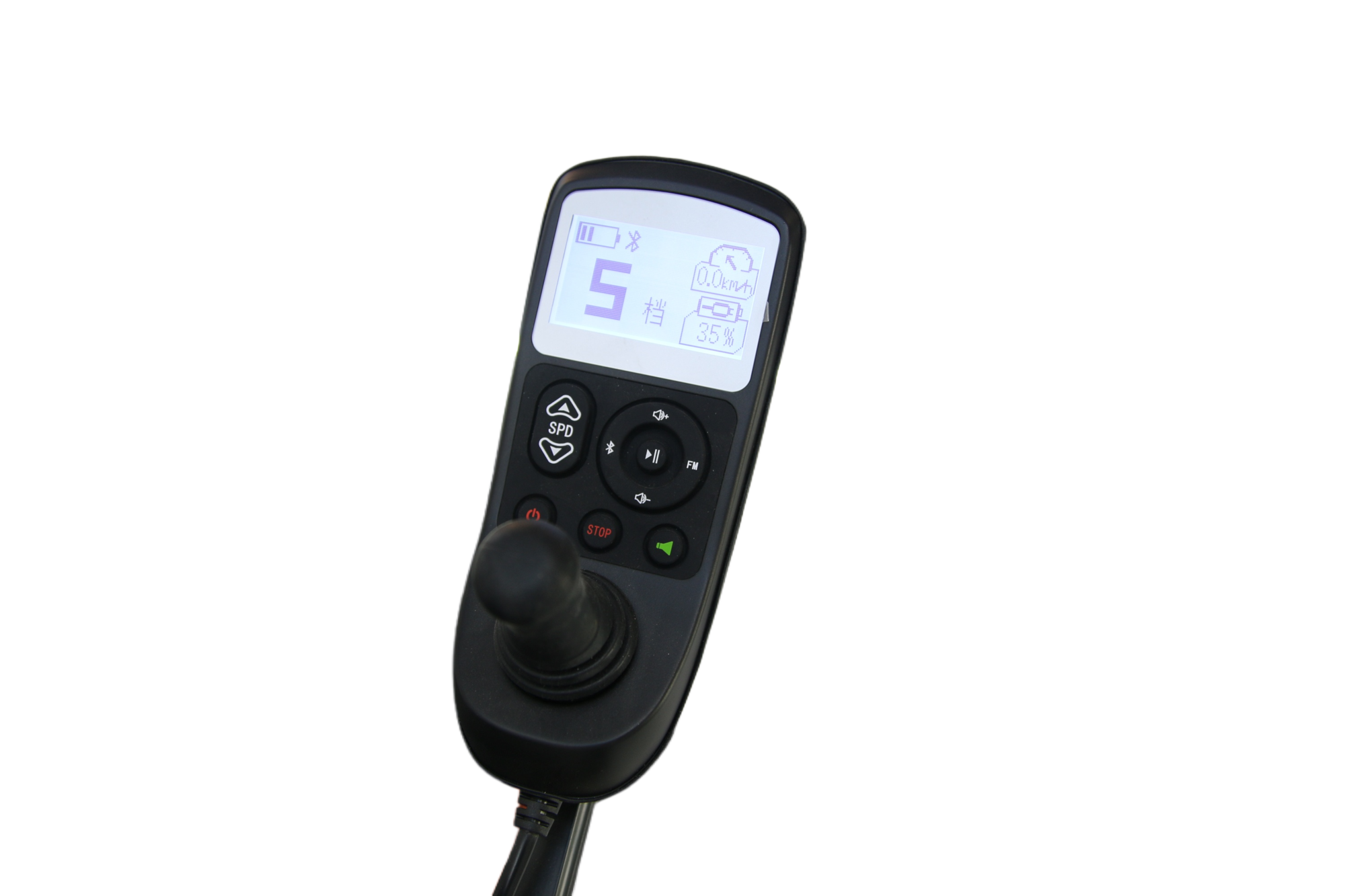

Safe braking design: Intelligent electromagnetic brake system is equipped, the wheelchair stops immediately when releasing the joystick to ensure riding safety.
Humanized accessories: Flip-back PU armrest is convenient for users to get on and off from the side, and the soft PU pad improves long-time sitting comfort.
Dual travel modes: Supports electric driving and manual pushing two modes, which can adapt to various daily travel scenes.
Overall advantages: Lightweight, safe, comfortable and easy to store, suitable for indoor movement and short-distance outdoor trips of people with walking disorders.
